Product Details:
|
|
| Product Name: | 2 Leg Wire Rope Sling 14mm x 2m WLL 3.15T/2.25T with Master Link and Hooks |
|---|---|
| Brand: | LKS |
| Wire Rope Diameter: | 14mm steel wire rope |
| Leg Length: | 2m per leg, custom leg length available |
| Rated WLL: | 3.15T at 0°–45° to vertical and 2.25T at >45°–60° to vertical |
| Structure: | Two-leg wire rope bridle sling with top master link, two hooks, thimble eyes, swaged sleeves and metal tag |
|
Payment & Shipping Terms:
|
|
| Payment Terms: | T/T, bank transfer or negotiated terms for bulk and project orders |
| Sample Order: | Available for dimension checking, fitting confirmation and project approval |
| Lead Time: | Based on rope diameter, leg length, master link size, hook type, quantity, tag requirement and testing request |
| Packing Method: | Carton, pallet, wooden case, steel frame or customized export packing |
| Shipping Method: | Sea freight, air freight, express delivery or buyer-appointed freight forwarder |
| Documents: | Commercial invoice, packing list, product photos, inspection record and optional proof test report |
|
Detail Information |
|||
| Rated WLL by Angle | 3.15T at 0°–45° to vertical and 2.25T at >45°–60° to vertical | Reference Breaking Load | Minimum 11.25T / 110.3kN calculated from single-leg WLL 2.25T × safety factor 5 |
|---|---|---|---|
| Wire Rope Diameter | 14mm steel wire rope | Leg Length | 2m per leg, customized length available |
| Wire Rope Construction | 6x36 IWRC, 6x37 IWRC, 6x19 IWRC or customized construction | Surface Finish | Galvanized steel wire rope, bright steel wire rope or stainless steel wire rope available |
| End Fittings | Top master link, two hooks, thimble eyes, swaged sleeves and optional safety latches | Inspection Support | Visual inspection, dimension check, fitting confirmation, proof test option and documentation support available |
| High Light: |
2 leg wire rope sling,2 leg wire rope sling 14mm x 2m WLL 3.15T |
||
Product Description
LKS manufactures 2 Leg Wire Rope Sling 14mm x 2m WLL 3.15T/2.25T with Master Link and Hooks for buyers who need a compact two-leg bridle lifting assembly with clear working load limits for different lifting angles. |

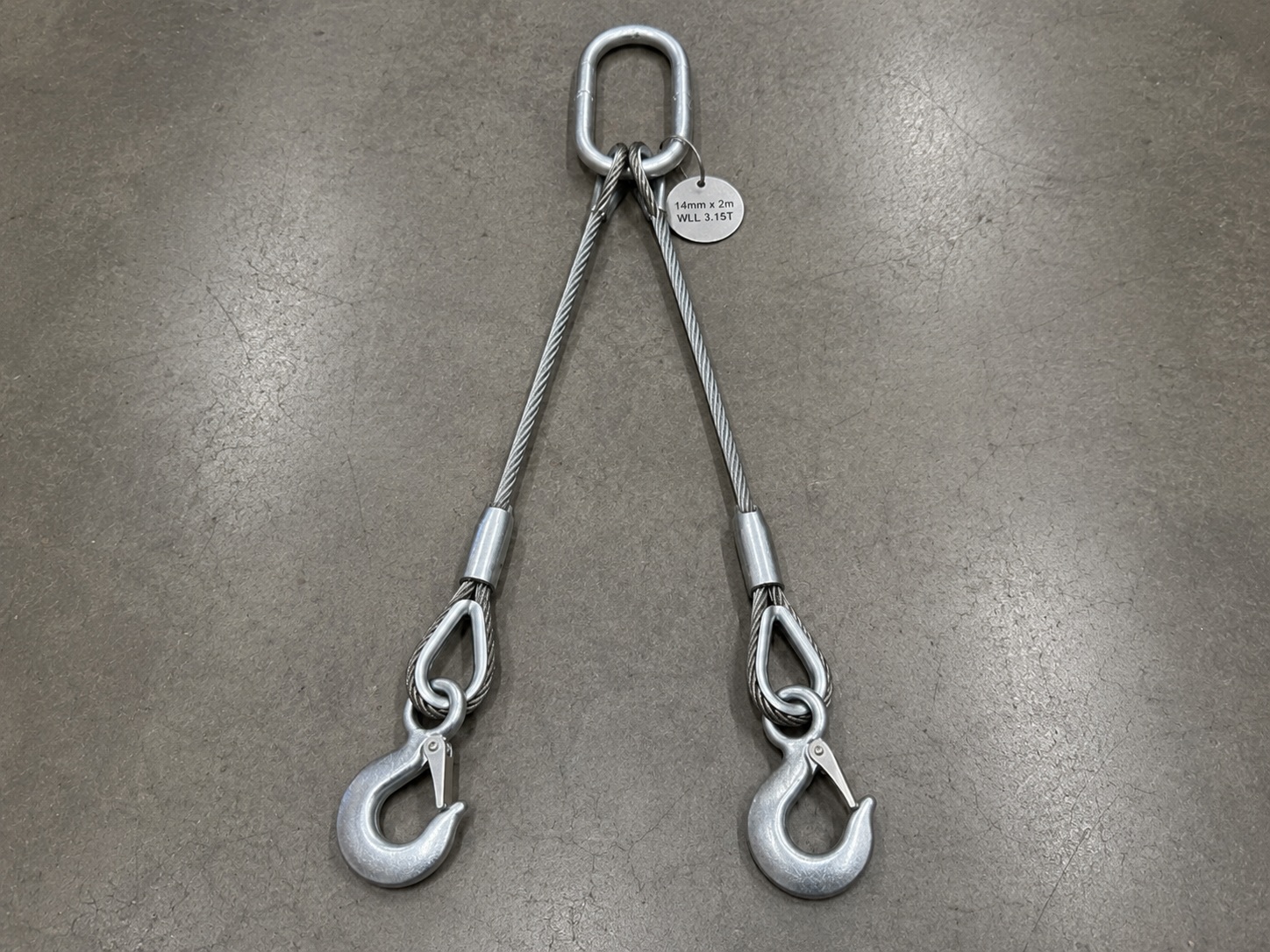

The LKS 2 Leg Wire Rope Sling 14mm x 2m WLL 3.15T/2.25T with Master Link and Hooks is a specific two-leg bridle sling made from 14mm steel wire rope, with each leg designed around a 2m working length. The top master link connects the sling assembly to the crane hook, while the two hook ends connect to two lifting points on the load.
For this product, the working load limit is angle-based: WLL 3.15T at 0°–45° to vertical and WLL 2.25T at >45°–60° to vertical. This is important because a two-leg wire rope sling does not carry the same rated load at every lifting angle. When the sling legs move farther away from the vertical line, the force in each leg increases and the allowable working load decreases.
Load Rating Note: The WLL values on this page are based on two-leg direct lifting with symmetrical loading and angle measured from the vertical. Final tag marking, proof test requirement and certificate details should follow the confirmed order specification. |
The rated capacity of a two-leg wire rope sling depends on the sling angle. For buyers, this means the rope diameter alone is not enough for correct selection. The lifting angle, load weight, lifting point distance, master link size and hook connection should all be confirmed before quotation.
| Load Parameter | Value for This Product | Technical Meaning |
|---|---|---|
| Single-Leg Reference WLL | 2.25T | Reference WLL for one 14mm steel wire rope sling leg in vertical direct lifting |
| Two-Leg WLL at 0°–45° to Vertical | 3.15T | Recommended WLL range for normal symmetrical two-leg direct lifting |
| Two-Leg WLL at >45°–60° to Vertical | 2.25T | Reduced WLL when sling angle becomes larger and leg tension increases |
| Reference Minimum Breaking Load | 11.25T / 110.3kN | Calculated from single-leg WLL 2.25T × safety factor 5; actual MBL should follow test certificate |
| Safety Factor | 5:1 reference | Common safety coefficient used for steel wire rope sling rating and specification |
| Angle Basis | Angle to vertical | 0° means vertical leg; 60° to vertical is normally treated as the practical upper angle range |

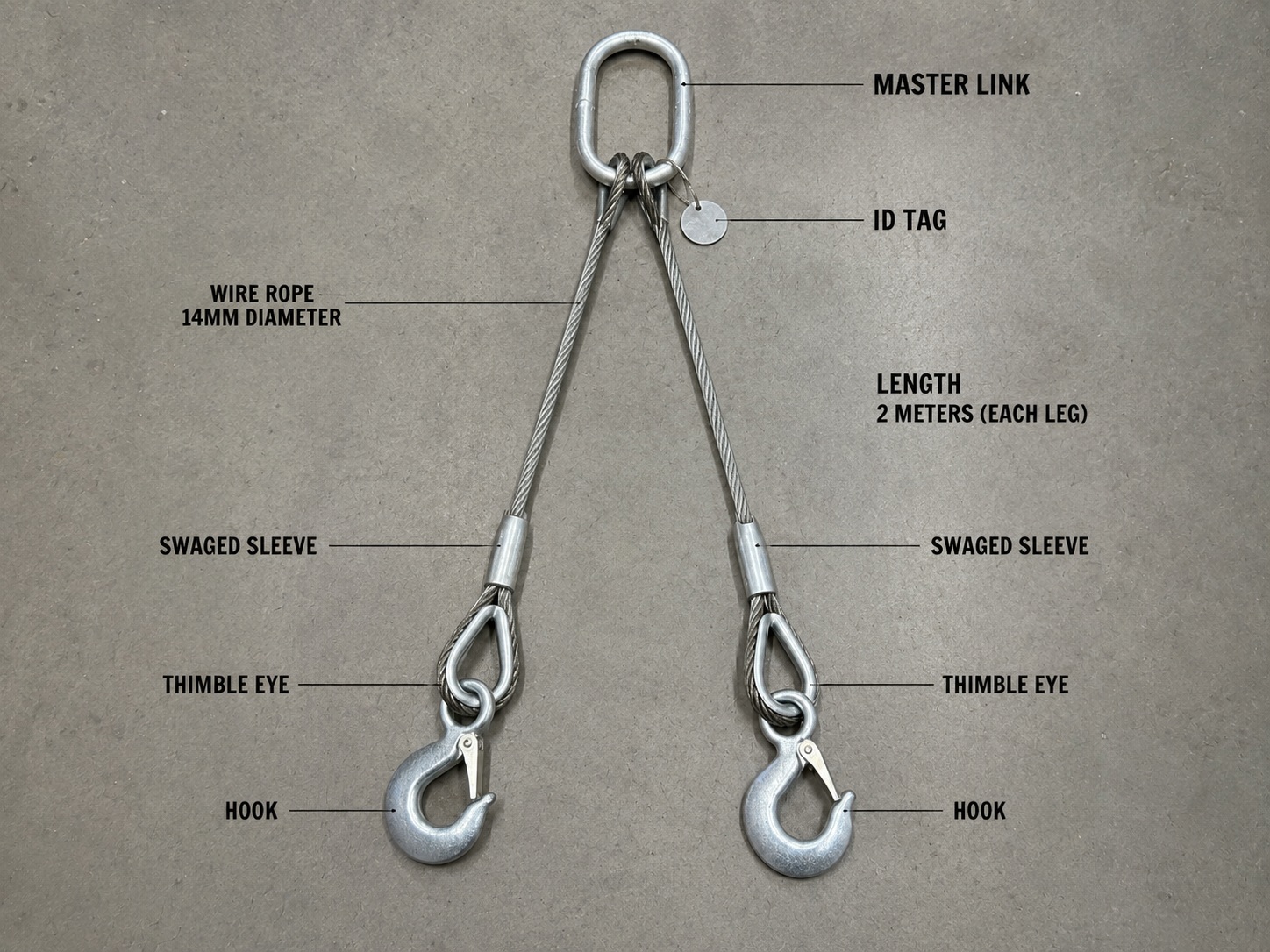

This 2 leg wire rope sling is built as a complete bridle lifting assembly. The top master link works as the main crane connection point. Two individual wire rope legs extend from the master link to the load connection points. Each leg can be supplied with hook end fittings, thimble eyes, swaged sleeves and identification tags according to buyer requirements.
| Product Part | Specification | Function for Buyers |
|---|---|---|
| Wire Rope Diameter | 14mm steel wire rope | Provides the sling body for dual-point industrial lifting |
| Leg Length | 2m per leg | Suitable for compact lifting setups and two-point load connection |
| Top Connector | Master link or oblong master link | Connects the two-leg sling assembly to the crane hook |
| End Fittings | Two hooks with optional safety latch | Connects each leg quickly to lifting lugs or load points |
| Terminations | Thimble eyes and swaged sleeves | Creates compact and stable sling leg ends |
| Identification | Metal tag with WLL, size, batch or buyer-required marking | Supports warehouse control, jobsite identification and repeat orders |
The following technical parameters are prepared for buyers who need a clear product specification before quotation. LKS can manufacture this 14mm x 2m two-leg sling as a standard project configuration or adjust the details according to the buyer’s drawing, old sling sample, lifting point layout or jobsite requirement.
| Parameter | Standard Specification | Custom Option / Note |
|---|---|---|
| Product Name | 2 Leg Wire Rope Sling 14mm x 2m WLL 3.15T/2.25T | Custom two-leg wire rope sling available |
| Brand | LKS | OEM marking or buyer tag available on request |
| Wire Rope Diameter | 14mm | Other diameters available according to lifting requirement |
| Leg Length | 2m per leg | Equal or unequal leg lengths can be customized |
| WLL at 0°–45° to Vertical | 3.15T | Suitable for normal symmetrical two-leg direct lifting angle range |
| WLL at >45°–60° to Vertical | 2.25T | Reduced WLL for larger sling angles |
| Reference Breaking Load | Minimum 11.25T / 110.3kN | Calculated by WLL × safety factor 5; final value subject to certificate |
| Wire Rope Construction | 6x36 IWRC or 6x37 IWRC available | 6x19, 7x19, 8x19 or buyer-specified construction available |
| Surface Finish | Galvanized steel wire rope | Bright steel or stainless steel wire rope available |
| Standard Reference | GB/T 16762 / EN 13414-oriented specification | Final compliance depends on confirmed order, testing and documentation |

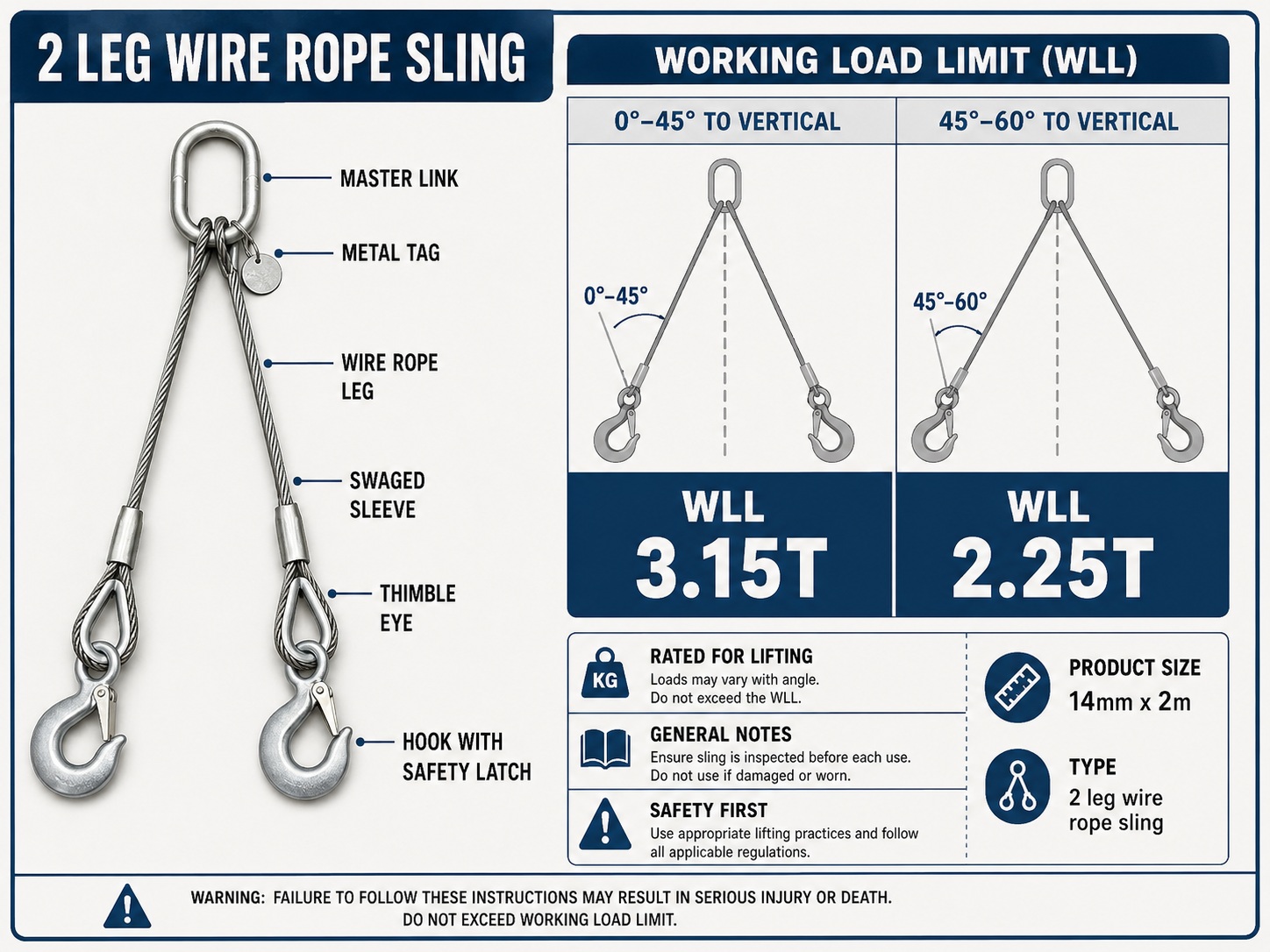

A two-leg wire rope sling does not carry the same rated load at every angle. When the sling legs move farther away from the vertical line, the force in each leg increases. This is why the same 14mm x 2m sling is rated at 3.15T for 0°–45° to vertical, but reduced to 2.25T for >45°–60° to vertical.
For procurement teams, this angle-based rating helps avoid selecting a sling only by rope diameter. A correct inquiry should include load weight, lifting angle, lifting point distance, master link size, hook type and required WLL marking on the metal tag.
| Buyer Requirement | How This Product Helps | Purchasing Value |
|---|---|---|
| Two lifting points | Two 14mm wire rope legs connect to two load points | Better fit for compact machinery, frames and fabricated components |
| Clear WLL by angle | 3.15T and 2.25T ratings are shown according to angle range | Helps buyers select more responsibly for actual lifting conditions |
| Crane hook connection | Top master link gathers the two legs into one lifting point | Simplifies rigging setup and crane connection |
| Fast load attachment | Two hook ends connect quickly to lifting lugs or load points | Reduces loose hardware preparation on site |
| Jobsite identification | Metal tag can show size, WLL, angle range, batch or buyer-required marking | Supports receiving inspection and warehouse control |

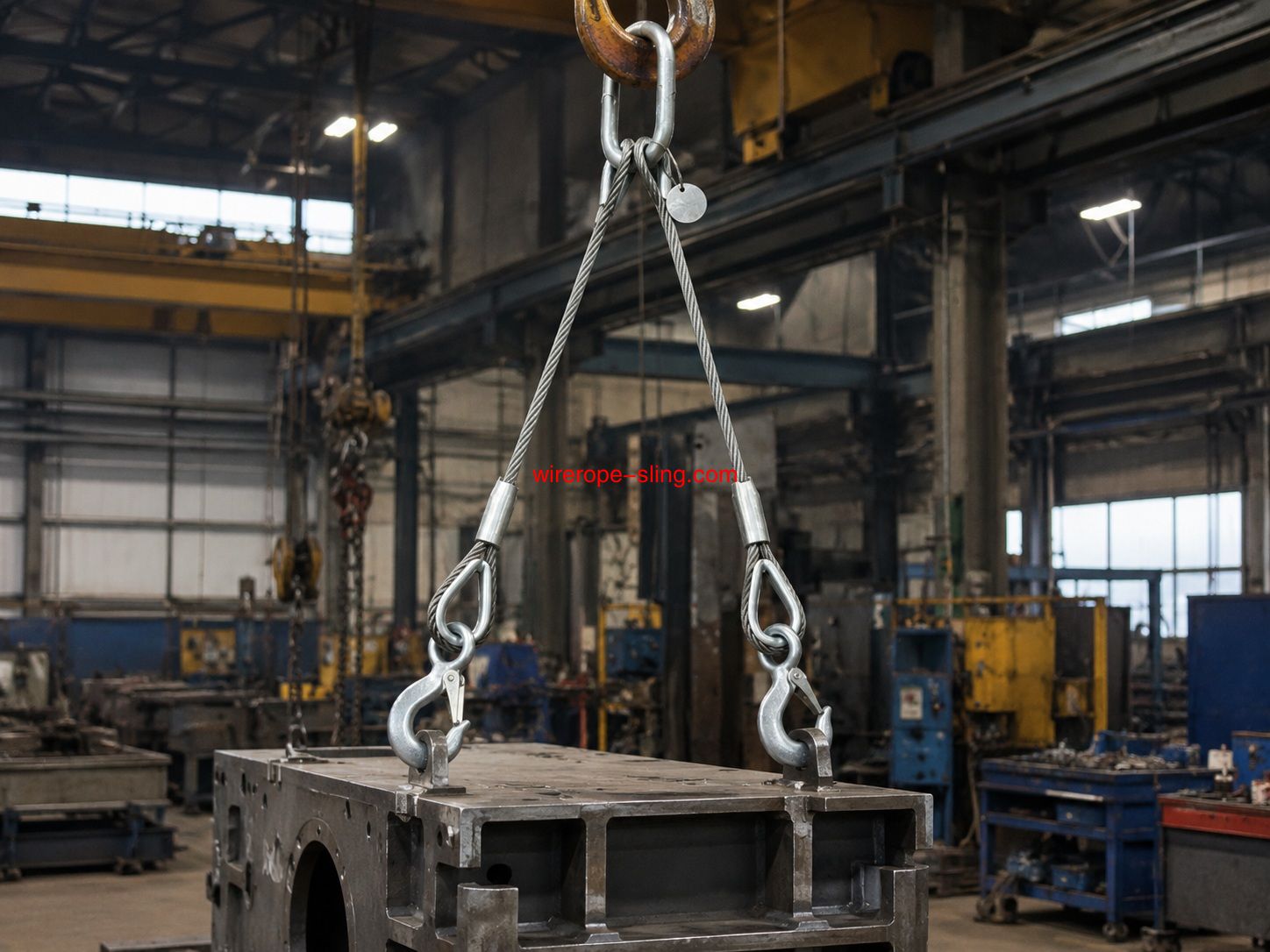

This specific 2 leg wire rope sling configuration is suitable for many industrial lifting tasks where two-point connection is required. Buyers can use the table below to match the product with common project scenarios.
| Application Scenario | Typical Load | Why 14mm x 2m Two-Leg Sling Works |
|---|---|---|
| Machinery Maintenance Lifting | Motors, pumps, machine parts and maintenance components | Two hooks connect quickly to lifting points and the 2m legs are practical for compact work areas |
| Steel Frame Handling | Small frames, welded structures and fabricated steel parts | Two-leg layout supports simple balanced lifting for dual-point loads |
| Construction Component Lifting | Pipe sections, brackets, support frames and site equipment | Master link and hooks reduce assembly time during crane lifting |
| Marine and Workshop Use | Repair parts, workshop equipment and marine service components | Galvanized rope, thimble eyes and metal tags support practical working environments |
| Industrial Rigging Supply | Distributor stock, project supply and repeat lifting assemblies | Specific 14mm x 2m configuration is easy to quote, reorder and customize |
Specification Reminder: For accurate quotation, buyers should confirm the load weight, lifting angle, two lifting point positions, master link size, hook type, WLL requirement, tag content and packing method. |

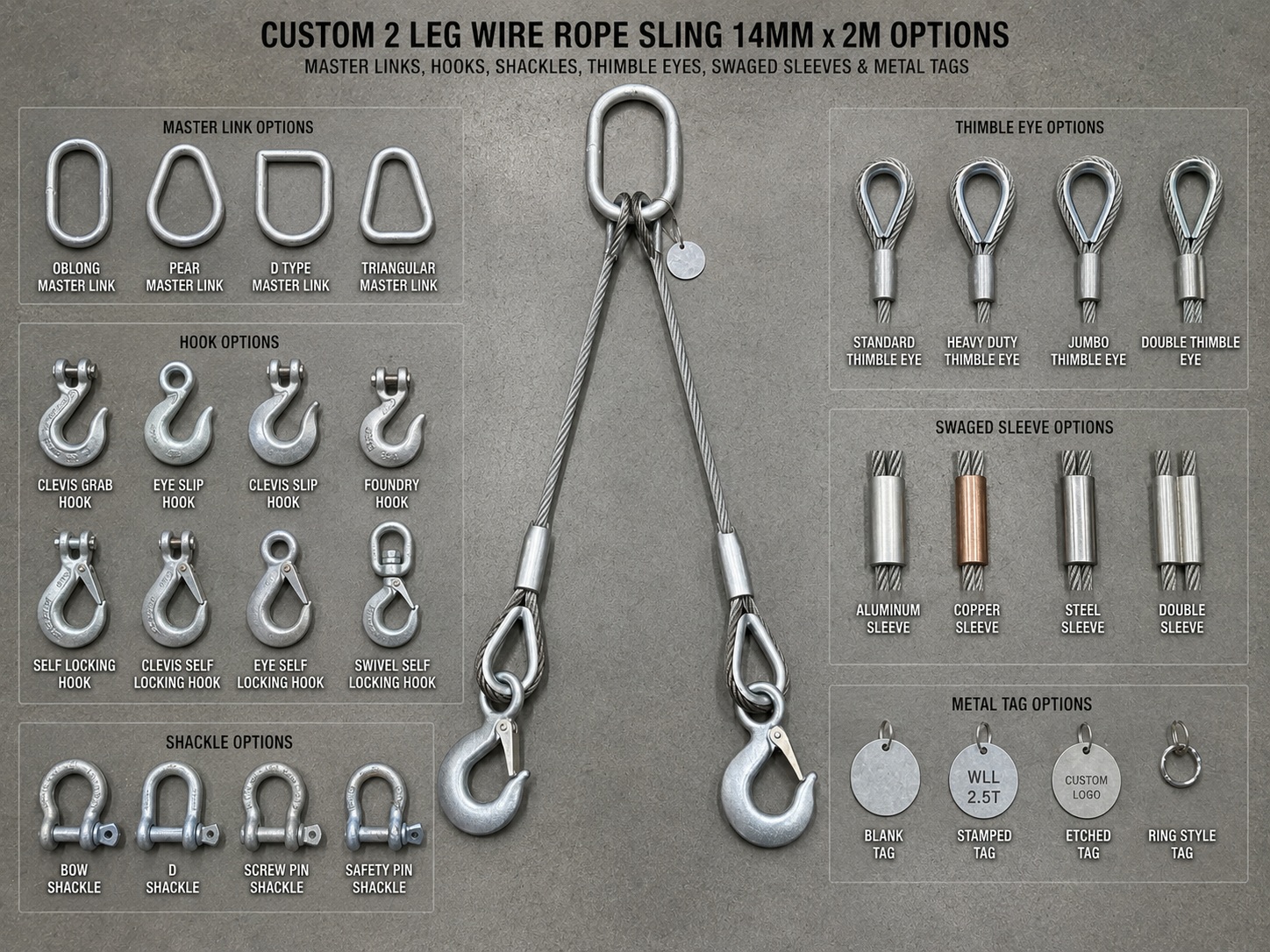

Although this page focuses on the 14mm x 2m specification, LKS can adjust the sling according to buyer drawings and project requirements. Buyers can change the wire rope diameter, leg length, hook type, master link size, surface finish, sleeve type, tag content and test requirement.
| Custom Item | Available Options | Buyer Benefit |
|---|---|---|
| Rope Diameter | 14mm standard on this page; other diameters available | Match different load requirements and project standards |
| Leg Length | 2m standard on this page; custom length available | Fit different lifting heights and load dimensions |
| Top Link | Master link, oblong master link or master link assembly | Match crane hook and rigging system |
| Hook Type | Eye hook, safety hook, clevis hook or buyer-specified hook | Improve compatibility with lifting lugs and load points |
| Tag and Marking | Metal tag, batch number, WLL, angle range, serial number or buyer logo | Support inventory control, project files and distributor resale |

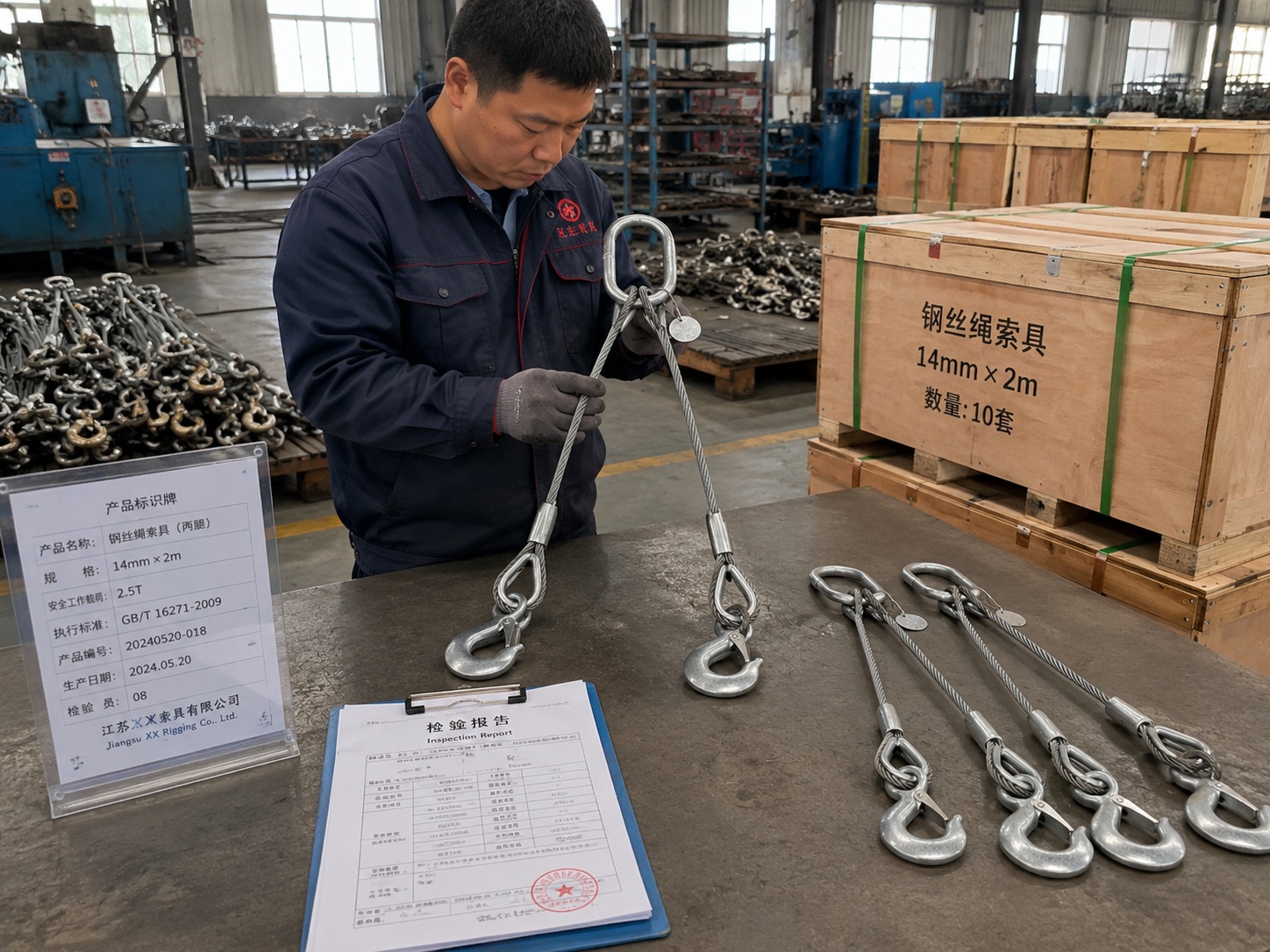

LKS understands that buyers of two-leg lifting slings often need a complete product with clear identification and reliable packing. Before shipment, the sling structure, leg length, swaged sleeves, thimble eyes, master link, hooks, WLL marking and tag information can be checked according to the confirmed order details.
| Quality Item | Available Support | Buyer Benefit |
|---|---|---|
| Dimension Check | Check 14mm rope diameter and 2m leg length before packing | Helps buyers receive the correct product specification |
| Fitting Confirmation | Confirm master link, hooks, thimble eyes and swaged sleeves | Reduces connection mismatch after delivery |
| Metal Tag | Size, batch number, WLL, angle range, serial number or buyer-required marking | Supports jobsite identification and warehouse control |
| Proof Test Option | Proof test and test report can be discussed before production | Useful for project procurement and serious lifting buyers |
| Export Packing | Carton, pallet, wooden case, steel frame or custom packing | Protects two-leg sling assemblies during international shipment |
For faster quotation, buyers can start with the standard product specification on this page: 2 leg wire rope sling, 14mm rope diameter, 2m leg length, WLL 3.15T at 0°–45° and WLL 2.25T at >45°–60°, top master link and two hook ends. If the lifting setup is different, send drawings, load photos, old sling tags or lifting point dimensions to LKS for customization.
| Inquiry Information | Recommended Details | Why It Helps |
|---|---|---|
| Product Specification | 2 leg wire rope sling, 14mm diameter, 2m leg length | Confirms the core product model quickly |
| Load and Angle | Load weight, lifting angle, lifting point distance and required WLL | Helps confirm whether 3.15T or 2.25T rating applies |
| Fitting Requirement | Master link size, hook type, shackle size or safety latch need | Improves connection compatibility |
| Tag and Test Need | Metal tag content, WLL marking, proof test request or inspection document | Supports project documentation and receiving inspection |
| Packing and Quantity | Sample order, batch order, carton, pallet, wooden case or export packing | Helps arrange production and shipping efficiently |
LKS focuses on custom wire rope sling manufacturing for B2B lifting buyers. This 2 Leg Wire Rope Sling 14mm x 2m with Master Link and Hooks gives buyers a clear starting specification with angle-based WLL values, while still allowing customization for rope diameter, leg length, fittings, tag content, proof test and packing.
| Specific 14mm x 2m Product Clear rope diameter, leg length and WLL values make quotation, comparison and repeat ordering easier. | Angle-Based WLL Information 3.15T and 2.25T load ratings help buyers understand capacity changes by lifting angle. |
| Custom Fitting Support Hooks, shackles, thimble eyes, master links and tags can be adjusted by project need. | Inspection and Export Packing Inspection records, proof test options and export packing can be arranged for B2B orders. |
This 2 leg wire rope sling has a rated WLL of 3.15T at 0°–45° to vertical and 2.25T at >45°–60° to vertical, based on two-leg direct lifting with symmetrical loading.
The reference breaking load is minimum 11.25T / 110.3kN, calculated from the single-leg WLL 2.25T multiplied by safety factor 5. Final breaking load and proof test information should follow the confirmed inspection document.
Yes. LKS can customize rope diameter, leg length, wire rope construction, master link size, hook type, surface finish, metal tag, WLL marking and packing method according to buyer requirements.
Buyers should provide rope diameter, leg length, load weight, lifting angle, lifting point layout, hook type, master link requirement, required WLL, quantity, destination and any proof test or documentation needs.
